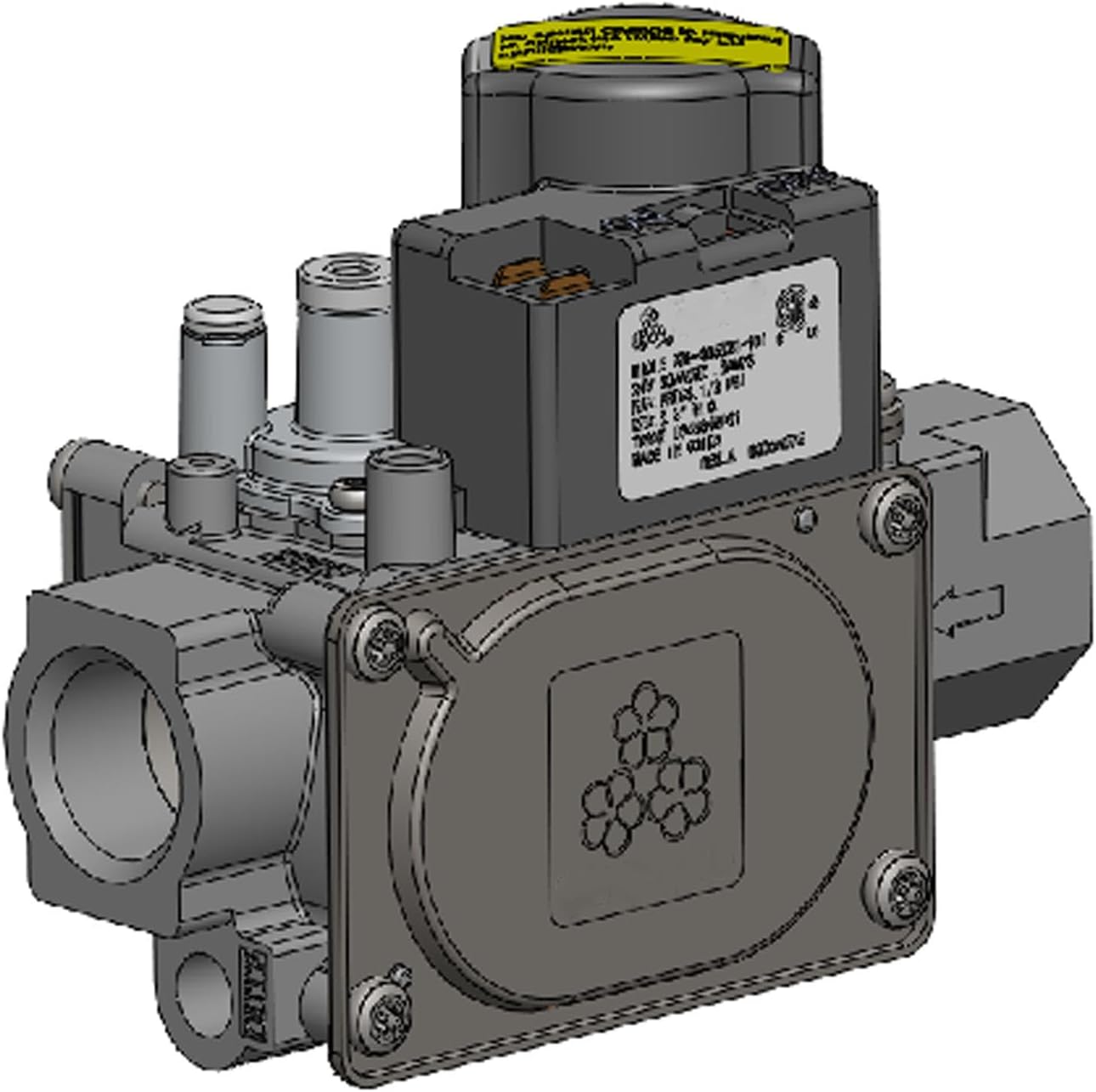

MENSI Gas Single Stage Main Valve Replace for White Rodgers 36G22-254 Gas Heating Furnace Valve, Part for Goodman PN No. 0151M00013 B1282628S B12826-28 B1282614 B12826-14 36G22Y-202 VR8215S121
4.0 (110 items)
Limited Time SaleUntil the end
04
09
59
€29.39 cheaper than the new price!!
Free shipping for purchases over €99
See all stores
Please note that the sales price and tax displayed may differ between online and in-store. Also, the product may be out of stock in-store.
New €48.99
Product details
| Management number | 213548748 | Release Date | 2026/04/12 | List Price | €19.60 | Model Number | 213548748 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- - Single Stage Gas Valve Model Perfect Fits The Furnace Gas Valve, Replacement Item Code: 0151M00013 B1282628S B12826-28 B1282614 B12826-14 36G22Y-202 VR8215S121 for GOODMAN, and 36G22-254 For White Rogers Model.

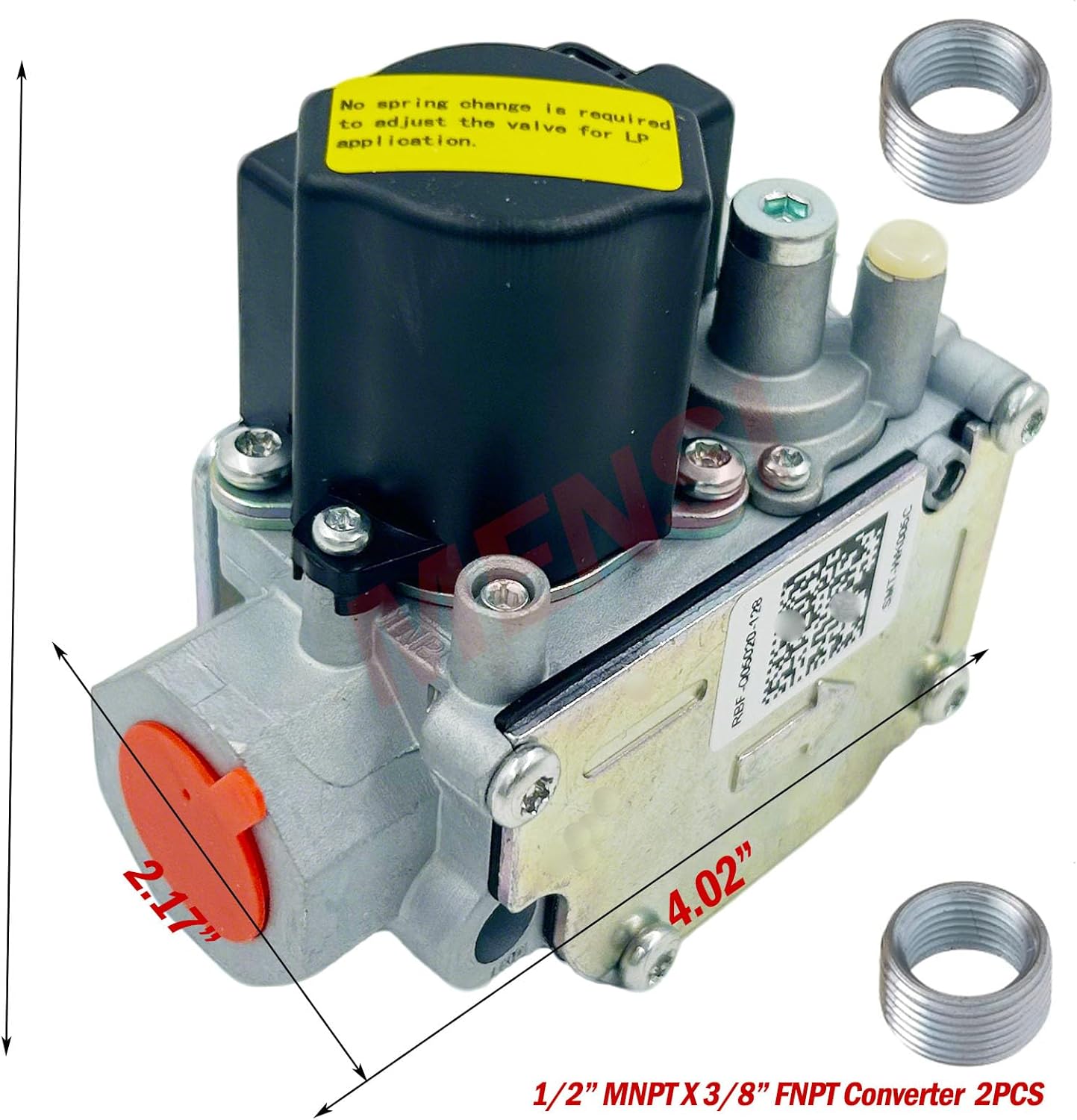

- - Preset with NG 3.5'WC Exit Pressure, Inlet and Outlet With 1/2" NPT Female Thread, and include 2 of 3/8" Female NPT Thread converters if your furnace has 3/8” Pipe Diameter. MAX working pressure for this gas valve is 14"W.C. (1/2"PSI)
- - Input 24V, Fast Opening Single Stage Control Valve, Preset with NAT, But Easy Change to LP if you need. Please read our product manual carefully along with the item package. No spring change is requireto adjust the valve for LP application.
- - When changing the gas type, there is no need to replace any parts of the gas valve, only need to adjust the pressure regulator according to above instruction.

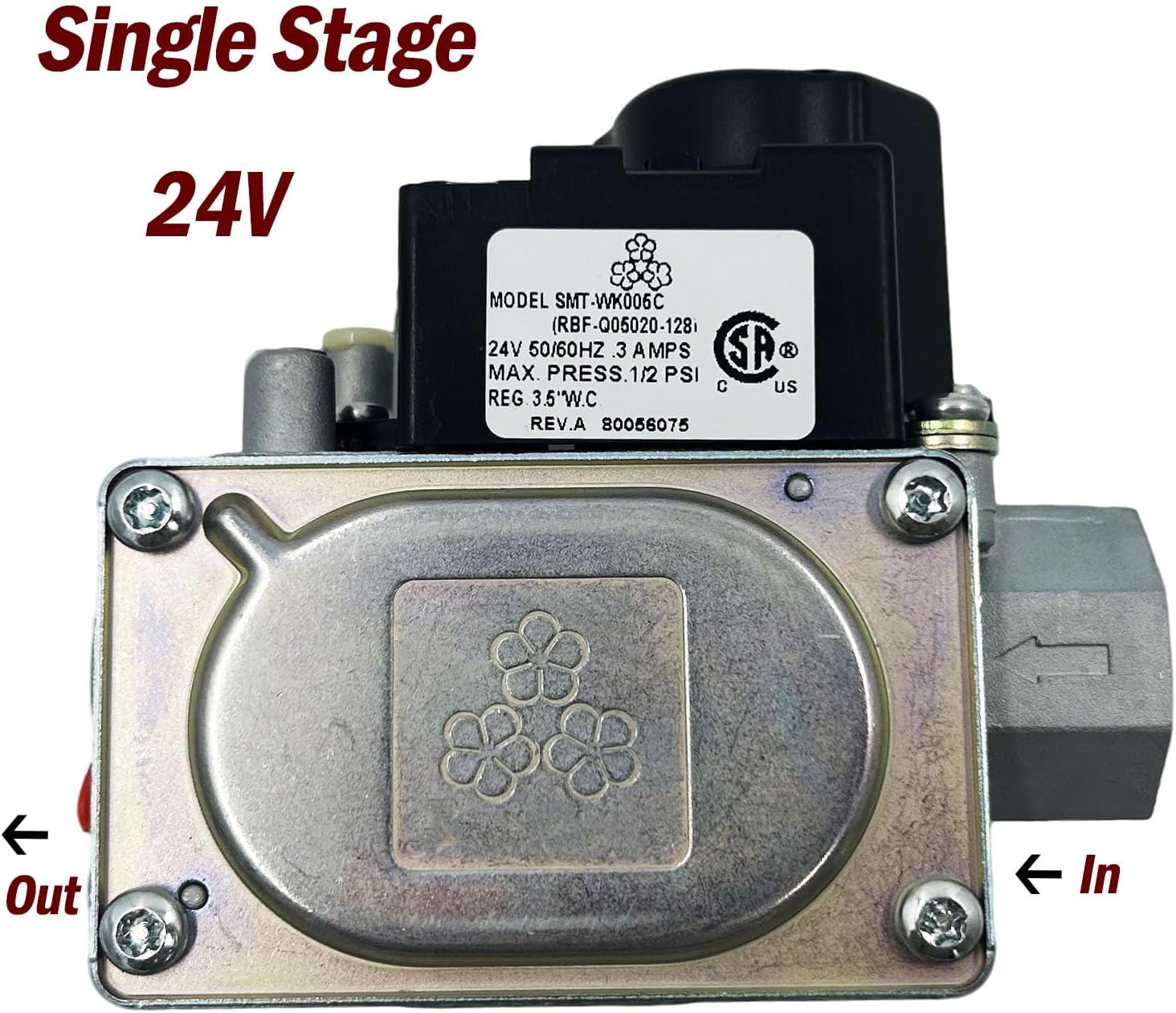

- - Working Temperature Range (-40°F TO 175°F), Adjust Range of Natural Gas: NAT. GAS:2.0"W.C. - 5.0"W.C, LP. GAS: 6.0"W.C. - 12.0"W.C. Current Setting：3.5"±.3"W.C.
- - Gas Flow Capacity: At 1"W.C. Pressure drop 140,000BTU/HR(.64 SP. GR. GAS. 1000BTU/CU.FT), Voltage：AC 24V，0.30A，50/60Hz
- - Gas Valve certification: CSA, certification No.: 80056075, Item Code: RBF(Q05) Please carefully read the manual and change the pressure and type as you want. If not required, Please pack it as original and request for return and refund in 30days. Product Life Warranty: 1 year.
| Size | 1/2" NPT Female, 3/8" Female NPT |
|---|---|
| Brand Name | MENSI |
| Valve Type | Globe Valve |
| Thread Size | 1/2" NPT Female, 3/8" Female NPT |
| Thread Type | NPT |
| Manufacturer | SANHUA |
| Model Number | 36G22-254 |
| Material Type | Aluminum |
| Connector Type | Threaded |
| Exterior Finish | Aluminum |
| Number of Ports | 4 |
| Maximum Pressure | 14 Inches of Mercury |
| Specification Met | CSA |
| Included Components | 1/2 to 3/8 converter 2 pcs, gas valve 1 set |
| Inlet Connection Type | National Pipe Tapered |
