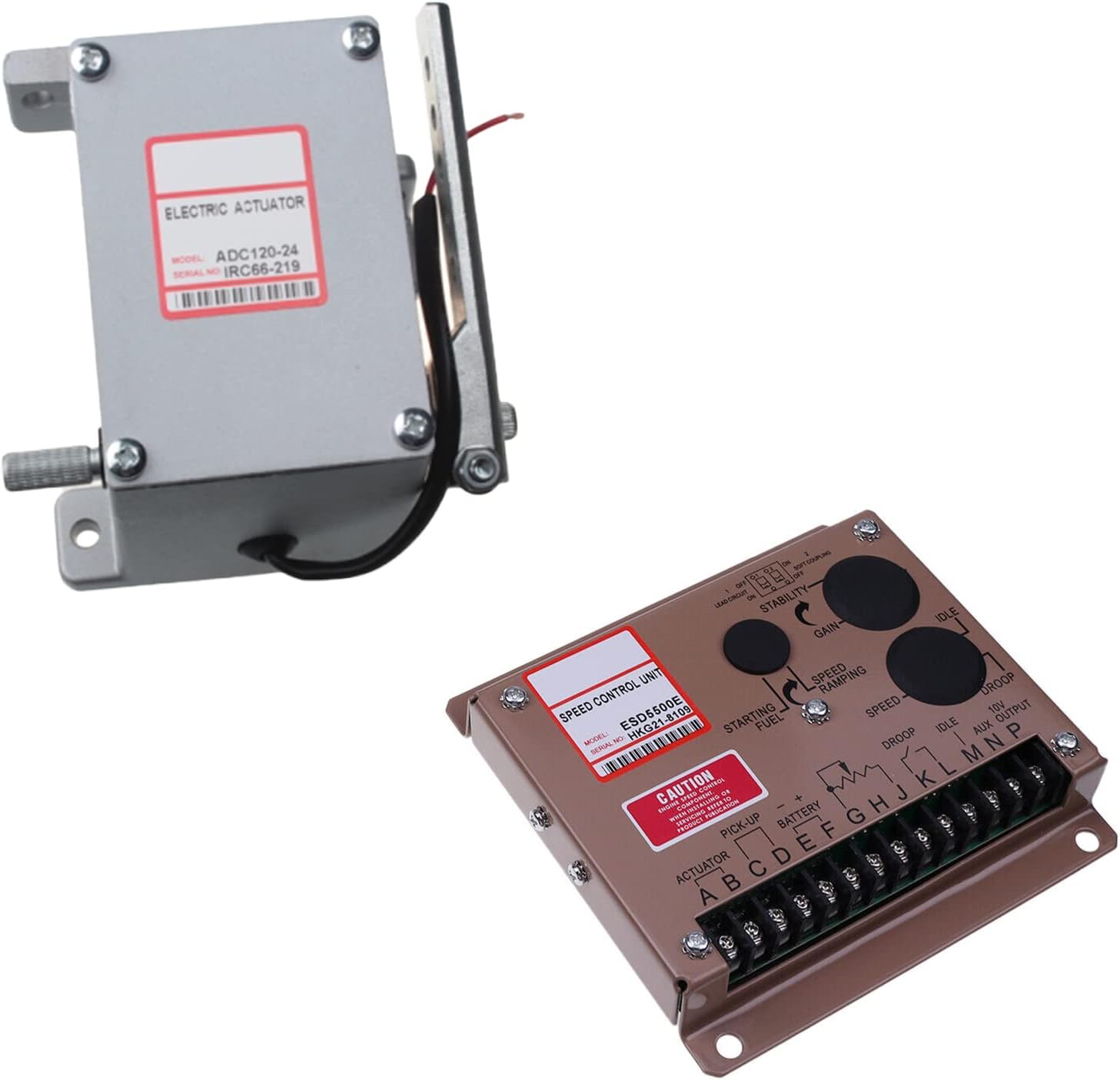

BLUESUNSOLAR ESD5500E Speed Control Unit Engine Speed Controller Governor Generator Genset (ESD5500E)

Application: Technical Specification: Isochronous Operation/Steady State Stability ± 0.25% or better Speed Range/Governor 1K-7.5K Hz continuous Speed Drift with Temperature ± 1% Maximun IDLE Adjustment 160±20Hz - 60% of set speed Droop adjustment Min.(K-L Jumpered) 15Hz. ±6Hz. per 1.0 A change Droop adjustment Max.(K-L Jumpered) 400Hz. ±75Hz. per 1.0 A change Droop Adj. Max. (K-L Jumpered) 875Hz., ±75Hz. per 1.0 A change Droop Adj. Min. (K-L Jumpered) 15Hz.,±6Hz. per 1.0 A change Speed Trim Range±200Hz Remote Variable Speed Range 500 -7.5Hz. or any part thereof Terminal Sensitivity J: 100Hz., ±15Hz/Volt @ 5.0 K Impedance L: 735Hz., ± 60Hz/Volt @ 65 K Impedance N: 148Hz., ±10Hz/Volt @ 1Meg. Impedance P: 10V DC Supply @ 20ma Max. Speed Switch Adjustment Range 1000-10000Hz. Environmental:Ambient Operating Temperature Range -40℃ to +85℃ Relative Humidity up to 95% Storage Temperature -55℃- 90℃ Shock 20-100HZ 500mm/Sec Input power:Supply 12 or 24V DC Battery Systems(Transient and Reverse Voltage Protected) Polarity Negative Ground(Case Isolated) Power Consumption 50mA continuous plus actuator current Actuator Current Range @ 25℃-(Inductive Load) Min. 2.5 Amps, Max. 10 Amps continuous Speed Sensor Signal 0.5-120 V RMS Speed Switch Relay Contacts(N.O.and N.C.) 10Amp

• 【Condition】New Replacement Speed Controller Governor
• 【Part Number】 ESD5500E
• 【Specification】【1】Input power:Supply 12 or 24V DC Battery Systems(Transient and Reverse Voltage Protected); 【2】Polarity Negative Ground(Case Isolated); 【3】Power Consumption 50mA continuous plus actuator current; 【4】Actuator Current Range @ 25℃-(Inductive Load) Min. 2.5 Amps, Max. 10 Amps continuous; 【5】Speed Sensor Signal 0.5-120 V RMS; 【6】Speed Switch Relay Contacts(N.O.and N.C.) 10Amp;
• For more details, please refer to product description. Please double check if the product picture and part number are consistent with your item before ordering. If you are not sure, please feel free to contact us, our customer service will reply you within 24 hours. Thanks a lot.
