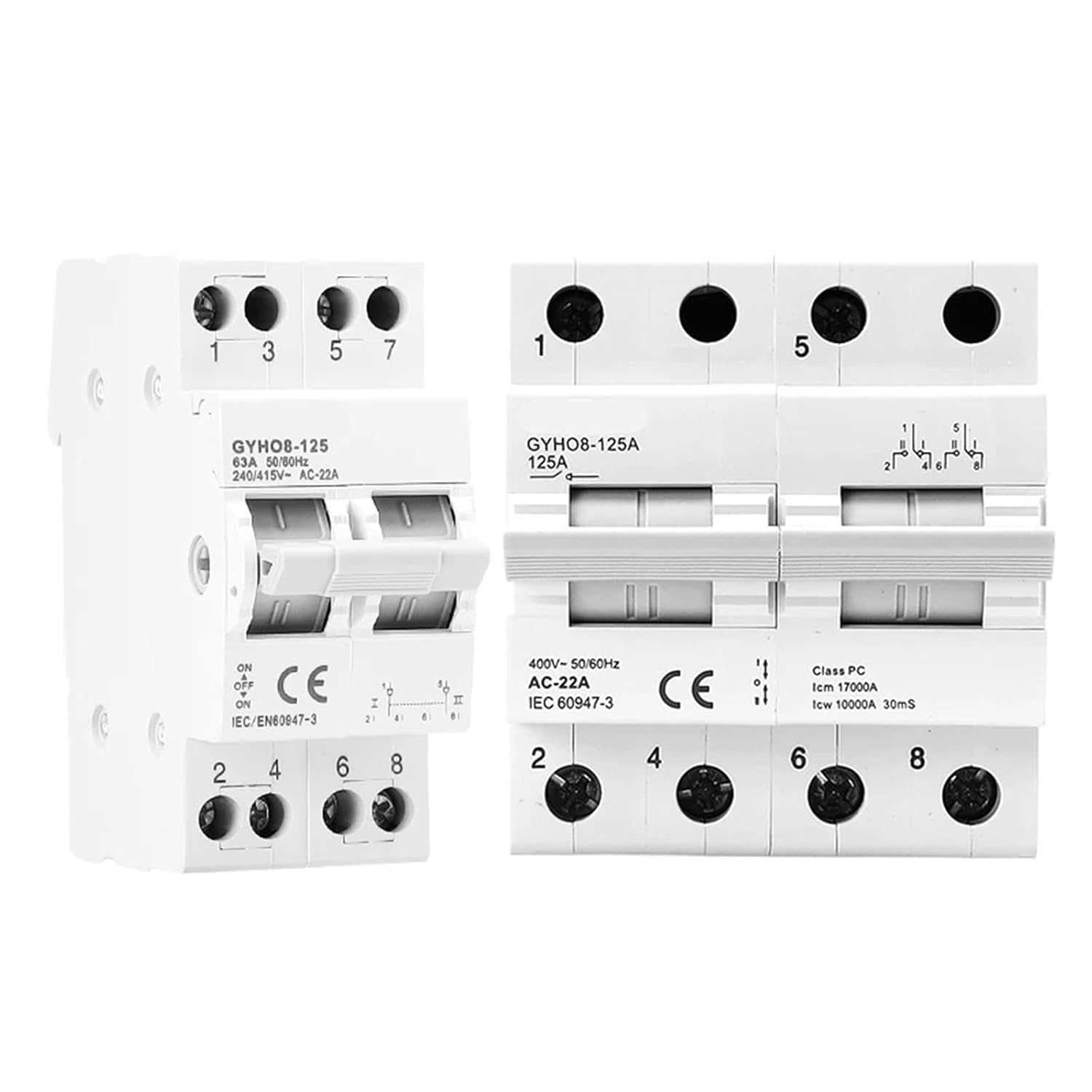

GYHO8 1P 2P 3P 4P 40A 63A 100A 125A Interlock Circuit Breaker AC Din Rail Manual Transfer Switch ATS(1P,63A)

Circuit BreakerGYHO8 1P 2P 3P 4P 40A 63A 100A 125A Interlock Circuit Breaker AC Din Rail Manual Transfer Switch ATSIt is used for on-off and switching , using DIN standard rail (35×7.5) installation.The shell is made of PA66 injection molding, with high flame retardant performance.It is an ideal product that needs to be used for switching and opening and closing in industrial equipment and circuits.The rated current is 40A/63A/100A/125A, and it is convenient and safe to install and wire on the guide rail.Instructions for use1PManualTransferSwitch(MTS) 1.When the handle onthe I position: 1 and 2 are connected2.When the handle on the II position: 1 and 4 are connected3.When the handle is in the middle position: both groups are disconnected.2PManualTransferSwitch(MTS) 1.When the handle on the I position:1 and 2 are connected5 and 6 are connected.2.When the handle onthe II position:1 and 4 are connected5 and 8 are connected.3.When the handle is in the middle position: both groups are disconnected.3PManualTransferSwitch(MTS) 1.When the handle on the I position:1 and 2 are connected5 and 6 are connected.9 and 10 are connected2.When the handle on the II position:1 and 4 are connected5 and 8 are connected.9 and 12 are connected3.When the handle is in the middle position: both groups are disconnected.4P Manual Transfer Switch(MTS)1.When the handle onthe I position:1 and 2 are connected5 and 6 are connected9 and 10 are connected13 and 14 are connected.2.When the handle on the II position:1 and 4 are connected5 and 8 are connected9 and 12 are connected13 and 16 are connected.3.When the handle is in the middle position: both groups are disconnected.
