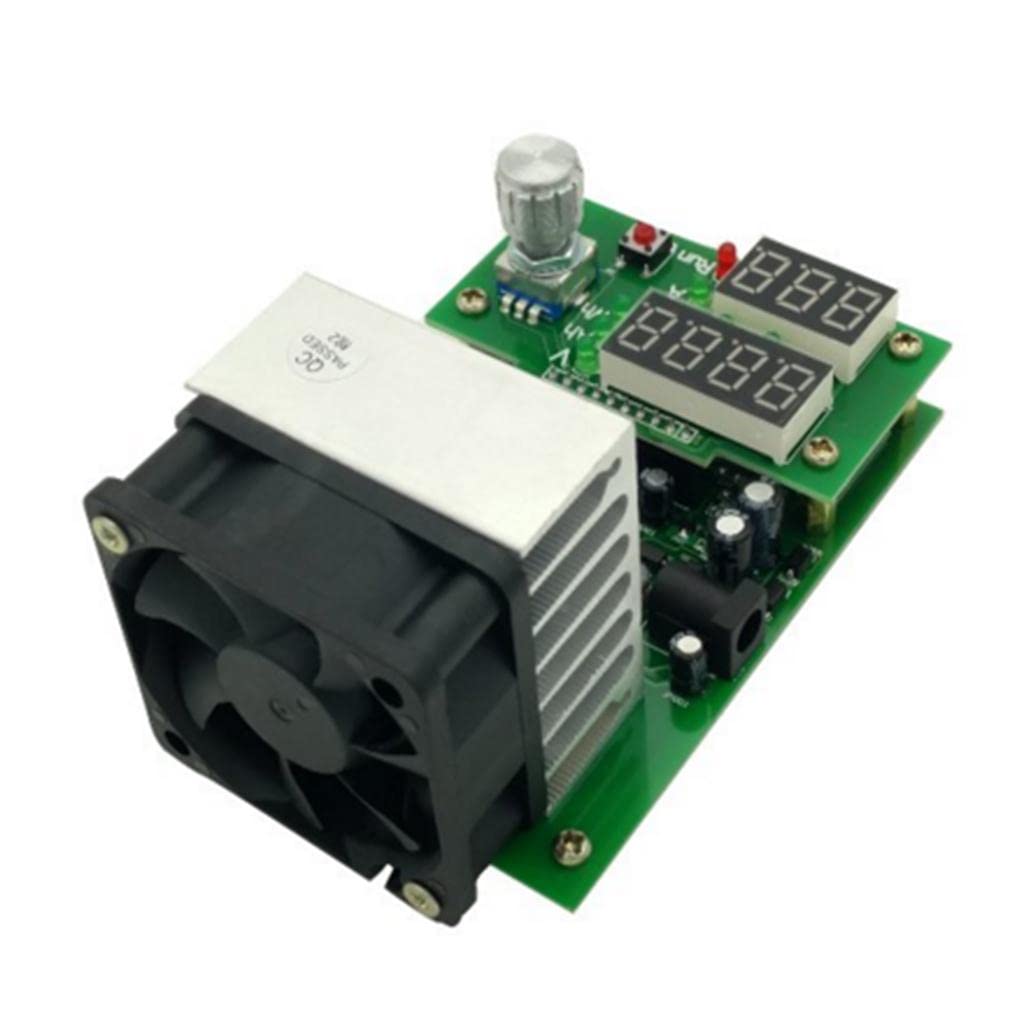

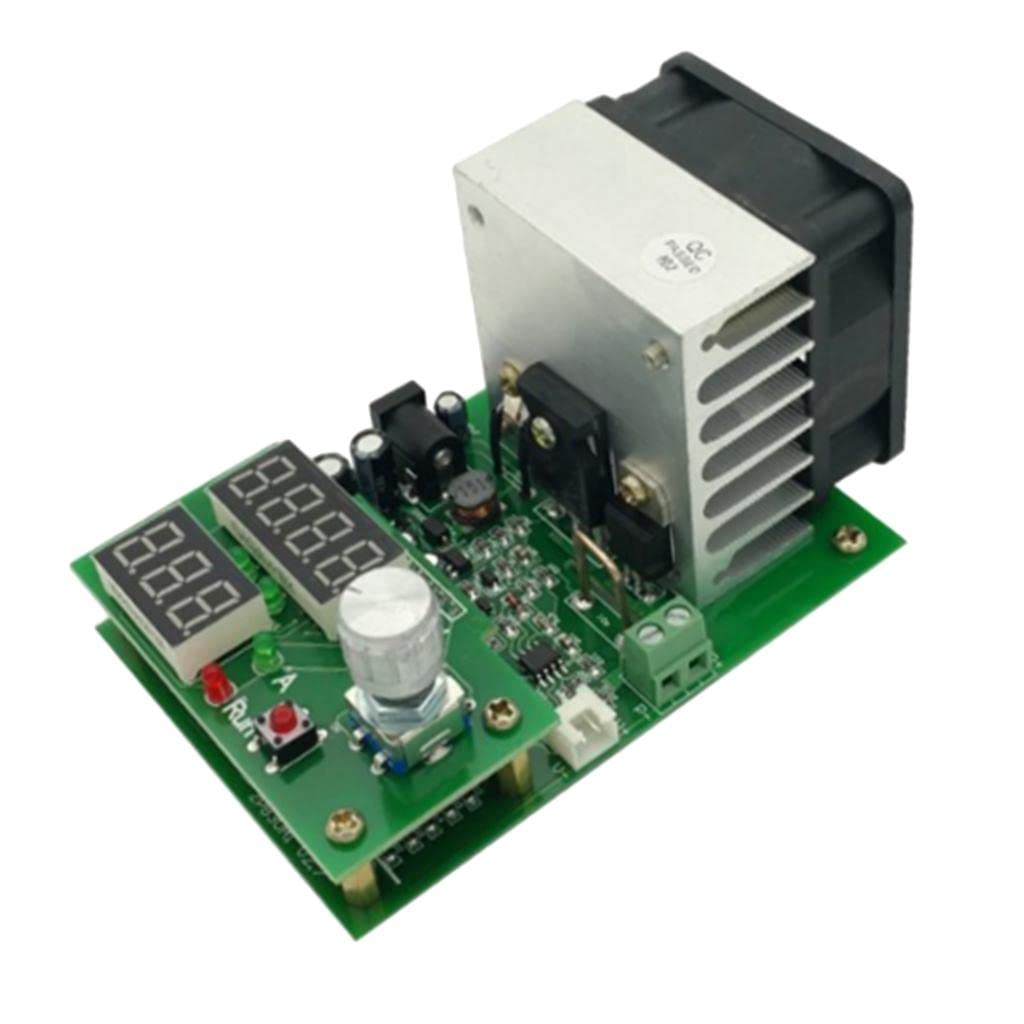

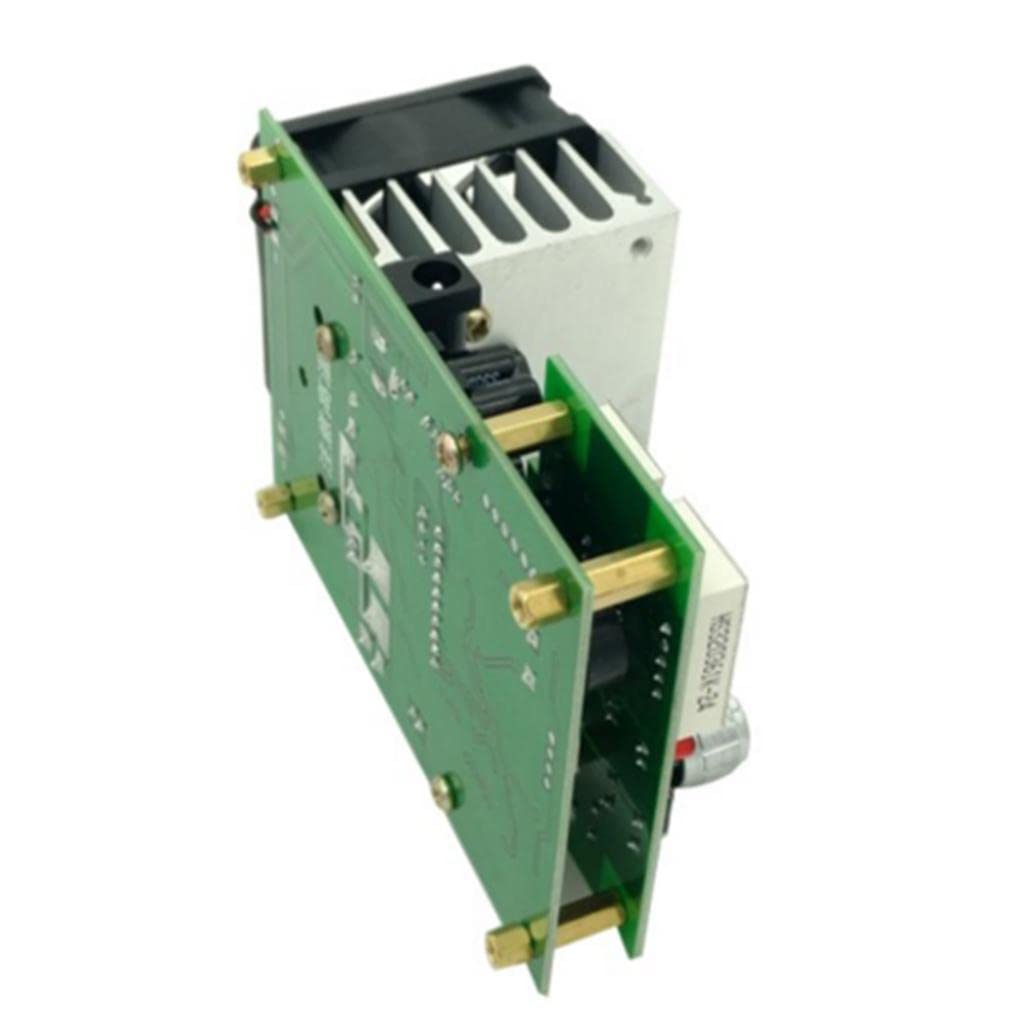

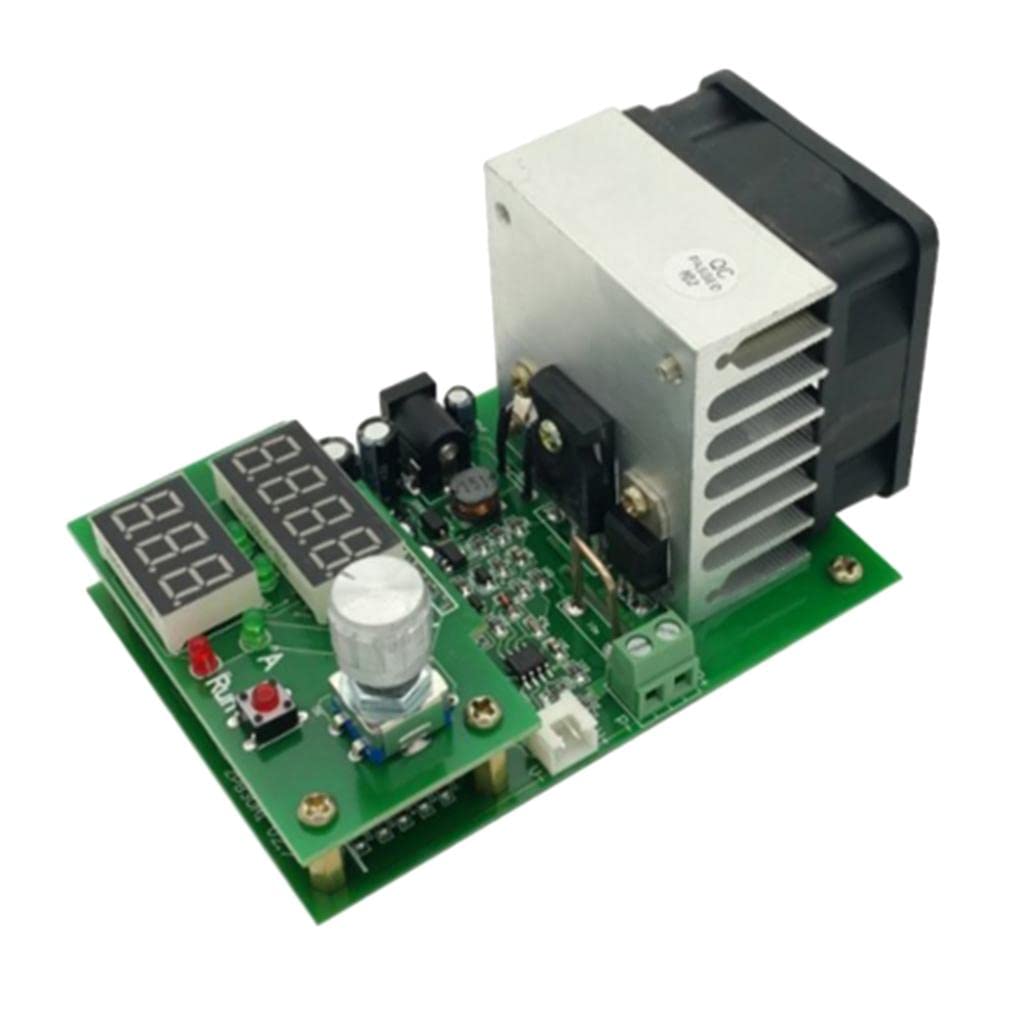

Charging Aging Battery Power Tester Module

Description: - Maximum 9.99A 30V 60W, super power automatically limits current - Automatic control fan speed according to temperature. Capacity test support four-wire test and two - four-wire automatic recognition - Overheating protection reverse polarity protection and multiple protection features. - Suitable for assembling the power adapter - When full speed, the fan rotates very fast, even if low speed, the fan still rotates not very slow.Specification: - Working Power requirements: DC12V - Operating mode: Single-mode constant current (CC) - Discharge current: 0.20-9.99A stepper 0.1A or 0.01A - Discharge current maximum error: 0.7% -0.01A - Maximum capacity test error: 0.5A 2.5%, 2A 1.5%, 5A and above 1.2% - Offline (termination) Voltage Range: 1.0-25.0V stepping 1V or 0.1V - Discharge voltage: 1.00-30.00V - Maximum voltage measurement error: 1% + - 0.02V - Power: 60W . Over the limited power, the board will automatically limit the current. - For example, When you use 60W board, 6V can hold 9.99A, but 20V can only hold 3.00A - Highest battery test statistic: 999.9Ah or 9999Wh, reaches the value stop testing (in value by a first stop condition) - Fan control: intelligent fan control. - Protection: Overheat protection "otP", transient overpower protection "oPP", - Overpressure protection "ouP", reverse polarity protection, power supply voltage abnormal protection.Size Chart:Size: 112x70x57mm/ 4.4x2.75x2.2inch (fan prominent board about 12mm)Package Includes:1 Piece Multifunction Constant Electronic Load ModuleNote:

• * Suitable for assembling the power adapter
• * When full , the fan rotates very fast, even if low , the fan still rotates not very slow.
• * Overheating protection reverse polarity protection and multiple protection features.
• * Automatic control fan according to temperature. Capacity test support four-wire test and two - four-wire automatic recognition
• * Maximum 9.99A 30V 60W, super power automatically limits current
