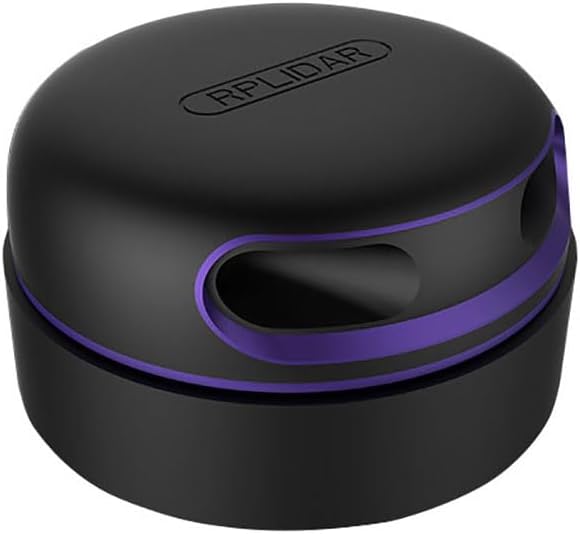

SLAMTEC RPLiDAR A2M12 360° Laser Radar,16kHz 12M Range Triangulation Lidar Sensor for SLAM,Robotics,Mapping,Multi-Point Touch and Man-Machine Interaction (Serial Port)

Description RPLIDAR A2M12 is a 360-degree triangulation laser sensing scanner that samples at up to 16 kHz, capable of generating 2D point cloud map information for a 12m radius, within low precision, and running for up to 5 years. This next-generation low-cost, high-performance laser scanner will be your great instrument for in-home robots, 3D modelling, etc. Features 🌱360 Degree Triangulation Laser Sensor Ranging Scanner: Generate 2D point cloud map information for 12m radius, 0.225° angular resolution 🌱Distinguished Sampling Capability: Equip high-speed RPVision3.0 range engine, for up to 16KHz measurement frequency, 5 ~ 15Hz adjustable rotational speed 🌱Prolong Operation Life: Apply OPTMAG light magnetic fusion technology for support up to five years of reliable running 🌱Certified Output Laser Power: Safe as IEC-60825 Class One eye safety rating 🌱Cup-size Design: Light & portable, 4cm ultra-thin shell, even can be placed on floor mopping robot For your convenience, we made a table comparing different RPLiDARs so you can easily pick one that suits your project! RPLIDAR A2M12 applies the Triangulation Laser Sensing theory that emits and receives laser to measure the distance by calculating the receiving time. By embedded high-speed RPVision3.0 range engine, the RPLIDAR A2M12 offers 360 degrees, 12M radius, 16 kHz light detection and ranging, 0.225° angular resolution(10Hz) with 5 ~ 15Hz adjustable rotational speed, low sensing precision, 5 years reliable operation for the generation of 2D point cloud map information. Application Scenarios General robot navigation and localization Environment scanning and 3D re-modeling Service robots or industrial robots working for long hours Home service /cleaning robot navigation and localization General simultaneous localization and mapping (SLAM) Smart toy localization and obstacle avoidance Angular Range: 0-360 Degree Angular Resolution: 0.225 degree Sample Duration: 0.25ms Distance Resolution: <0.5mm Distance Range: 0.2 - 12m, Based on white objects with 70% reflectivity Scan Rate: 5~15Hz, Typical 10Hz Sample Frequency: 16000Hz Part List 1 x A2M12 RPLIDA R（PWM motor driver embedded） 1 x USB Cable 1 x DC Cable 1 x Adapter Driver Board

• Slamtec A2m12|Rplidar A2m12|360 Degree Triangulation:Generates 2D point cloud maps with a 360-degree triangulation laser sensor, ensuring comprehensive coverage.
• Safety and Portability:IEC-60825 Class One eye safety rating ensures safety while its cup-size design makes it portable for various applications.
• High-Speed Sampling:Boasts a high-speed RPVision3.0 range engine for up to 16KHz measurement frequency, enhancing real-time data collection.
• Optimized for Reliability:Features OPTMAG light magnetic fusion technology for a reliable 5-year lifespan, minimizing downtime.
• 12M Range & 0.225° Angular Resolution:Scans a 12m radius with 0.225° angular resolution, offering precise measurements for in-home robots.
• Pack List:1 x A2M12 RPLIDAR（PWM motor driver embedded）;1 x USB Cable;1 x DC Cable;1 x Adapter Driver Board;
