PNI Escort HP 446 UHF Radio Station Package, 199 Channels and PNI UF400 Antenna with Magnet

PNI-HP446 - PNI Escort HP 446 UHF radio station, 199 channels, ASQ 9 levels, Scan, Dual Watch, CTCSS-DCS, power 0.5W to 15W, NRC functionFunctionsScanTimeout TimerBCL (Busy Channel Lockout)ASQ squelch, 9 levelsHi/Low powerDual watchKey lockSmall GainTransmit IndicatorSignal StrengthMonitorNRC (Noise Reduction Circuit)General characteristicsFrequency 400 - 470 MHzUHF operating bandProgrammable channels 199 channelsSecurity codes 1024 DCS / 51 CTCSSFrequency step 2.5 / 5 / 6.25 / 10 / 12.5 / 20 / 25 / 30 / 50 KHzPower supply 13.8 VdcConsumption ≤380mA in RX / ≤2600mA in TXOutput power 15W/5W/0.5WDimensions 110 x 110 x 25 mmLCD screenPNI-UF400 - PNI UF400 UHF antenna, 47 cm, 430-470 MHz, with 120 mm magnetic baseProduct identificationPNI producerProduct code PNI-UF400CharacteristicsAntenna type 1/4 λUHF working bandFrequency 430-470 MHzS.W.R. minimum in the center of the band less than 1.5:1Maximum supported power 400 WImpedance 50 OhmsI gain 6 dBiPolarizationPL connectorHole diameter 22 mmWire material Stainless steelLength 475 mmPackage contentsAntennaMagnetic base 120 mmCable RG58 4 mPlug PL259UHF radio stationMicrophonePower cableMounting supportsCigarette lighter plugUser manual

• The PNI Escort HP 446 is a communication tool within everyone's reach. Broadcasting on UHF radio frequencies is only possible on the basis of a license to use radio frequencies or a broadcasting license. Reception in the VHF/UHF radio spectrum is free.
• The PNI Escort HP 446 UHF radio works in frequency or channel mode. You can choose to display simultaneously on the screen both working modes (FRQ), only channel mode (CH) or channel mode + channel name (NM).
• PNI Escort HP 446 is a UHF station that offers maximum freedom to the user by customizing various functions: selectable emission power (15W/5W/0.5W), manual channel programming, frequency editing, scan mode selection, adding or excluding channels from scanning , call coding, 9-level adjustable squelch, frequency step selection, etc.
• The PNI Escort HP 446 features a noise reduction circuit (NRC) that helps improve the quality of the received sound. Activate the NRC function from the station menu and you will immediately notice the difference. Together with the ASQ function (9 levels) you will get exceptional reception quality.

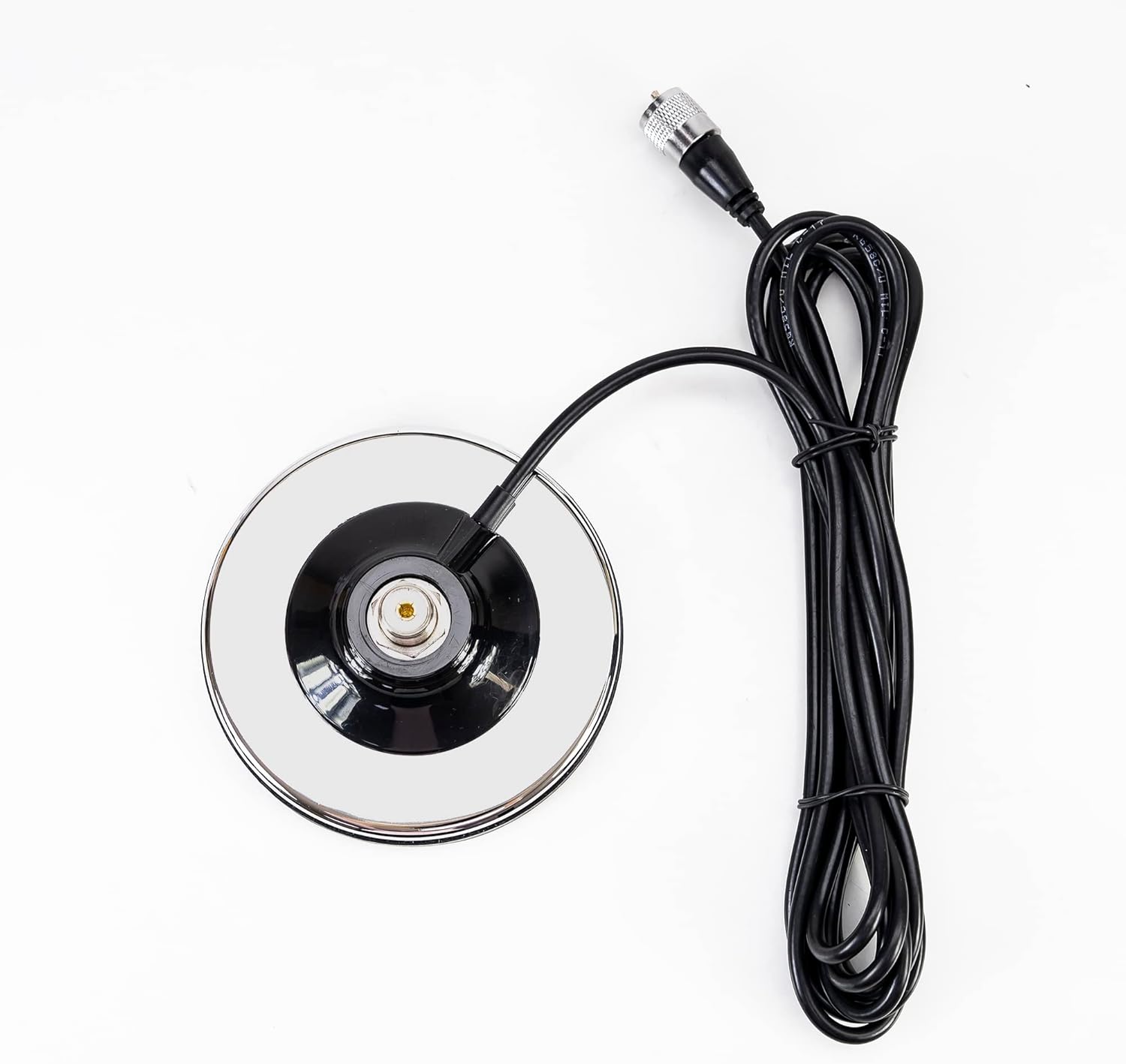

• The PNI UF400 antenna has a strong magnet, compact dimensions and 120 mm in diameter. The base is constructed of high quality materials, glossy ABS plastic and a galvanized metal coating to prevent corrosion. The antenna wire is made of the best stainless steel, which resists bending and rust. Also, the antenna coil has an anti-corrosion coating with excellent properties of resistance to external agents.
