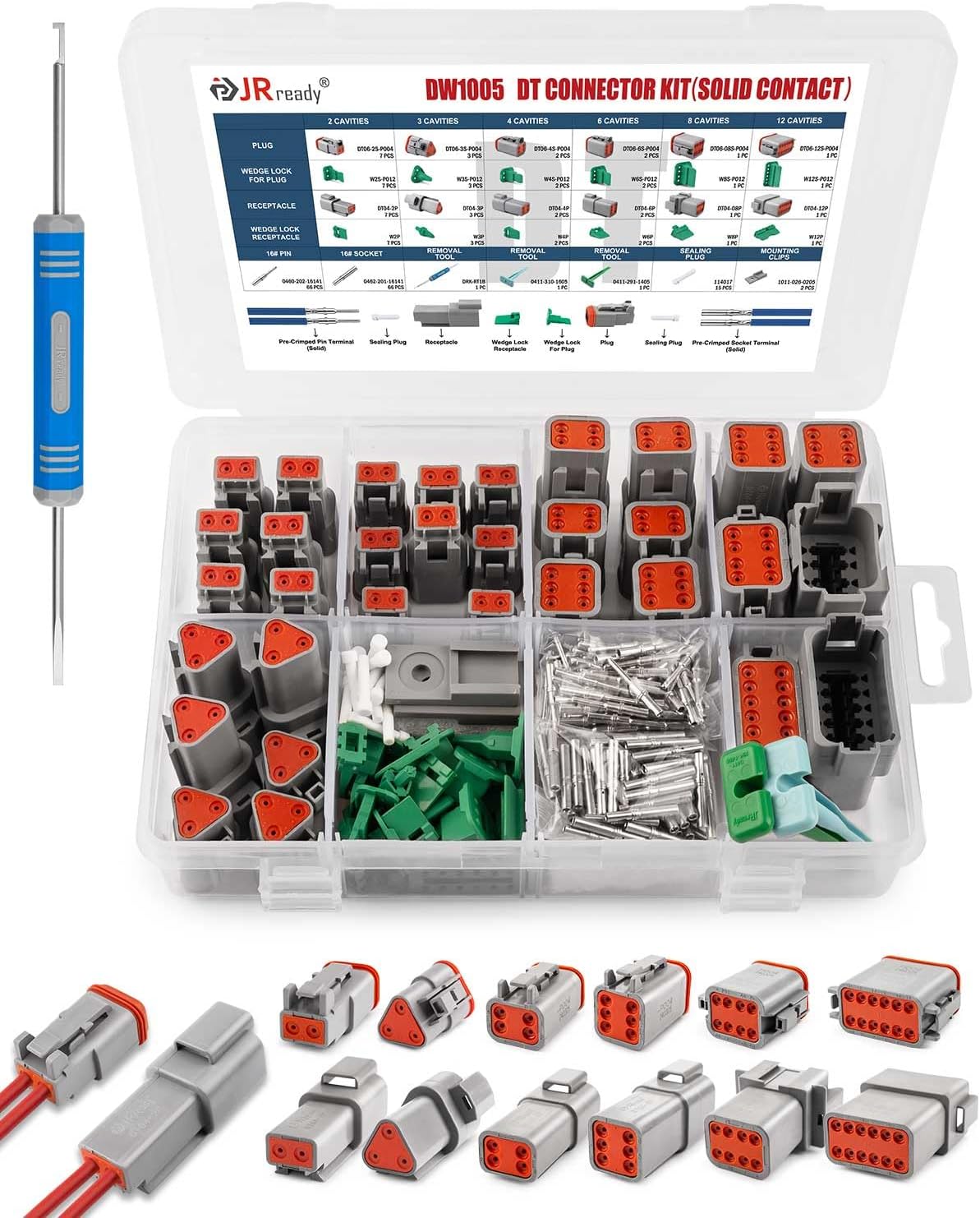

JRready DW1005 Deutsch Connector Kit,2 Pin Waterproof Connectors,3 4 6 8 12 Pin Gray DT Connector with Size 16 Soild Contacts(20-16AWG) and Sealing Plugs for Truck, Motorcycle, Marine, Boat,Automotive
4.1 (41 items)
Limited Time Sale€53.39 cheaper than the new price!!
Product details
| Management number | 208166018 | Release Date | 2026/03/22 | List Price | €35.60 | Model Number | 208166018 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- DEUTSCH CONNECTORS APPLICATION – JRready connectors are ideal for various waterproof electrical connections in automobiles, trucks, buses, boats, motorcycles, off-road vehicles, emergency vehicles, construction equipment, agricultural machinery, mining, forestry, recreational vehicles, marine applications, and extreme sports. They are commonly used for lights, headlights, turn signals, solenoids, boat fans, stereos, gauges, switches, wire-to-board connections, and actuators, making them perfect for demanding environments.
- SOLID CONTACTS/TERMINALS – Size 16 closed-barrel contacts, 0460-202-16141 (Pin) and 0462-201-16141 (Socket), provide superior stability and corrosion resistance. These contacts are easy to crimp and install into connectors and are rated for 500 mating cycles, ensuring durable, long-lasting performance.
- HIGH CONDUCTIVITY – The Deutsch 16# solid pin is made from a nickel-copper alloy, offering twice the conductivity of standard brass. This reduces heat generation and improves circuit performance and safety. It supports wire sizes from 16 to 20 AWG and handles up to 13 amps of continuous current.

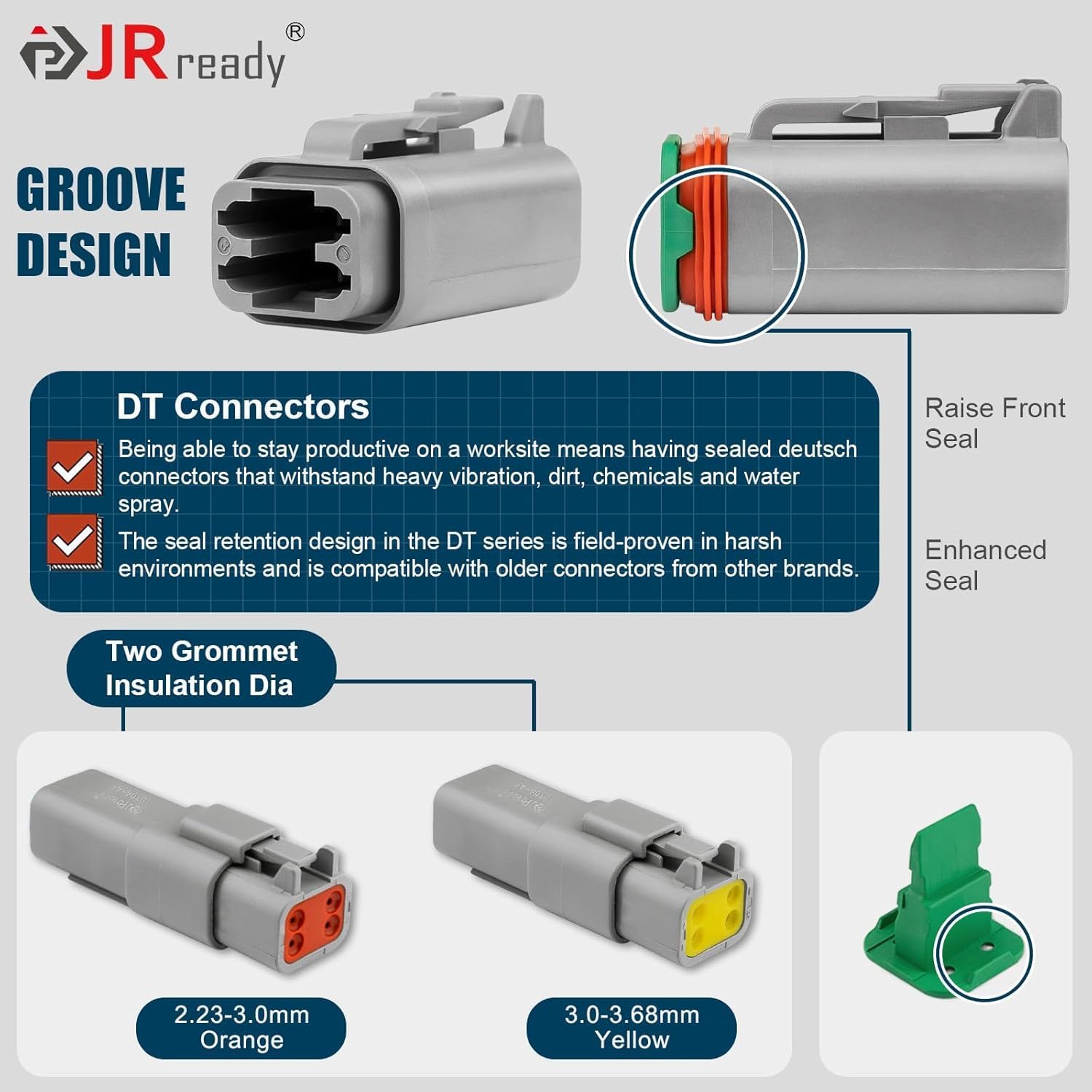

- DT IP68 WATERPROOF CONNECTOR – The 2, 3, 4, 6, 8, and 12-pin electrical wire connectors are waterproof, dustproof, corrosion-resistant, and wear-resistant. Once installed, they maintain their electronic integrity without any leakage or performance loss. Available in optional in-line, flange, or PCB mount configurations.

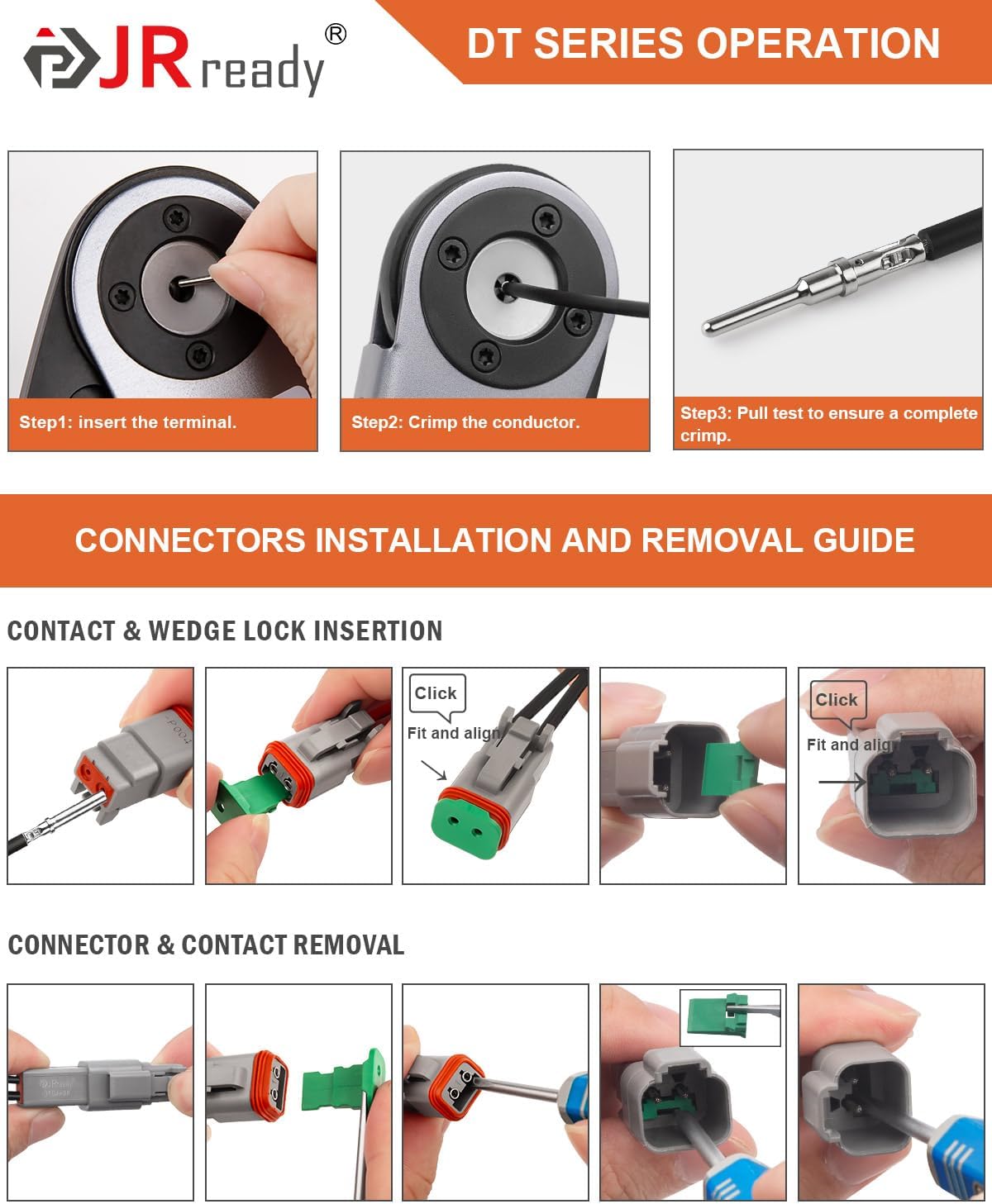

- INSERTION & EXTRACTION TOOL – This tool is a great multipurpose tool allowing the user to remove wedgleocks and also release pins and sockets on several Deutsch series connectors such as : DT, DTM, DTP, DRB, DTV and STRIKE Series.

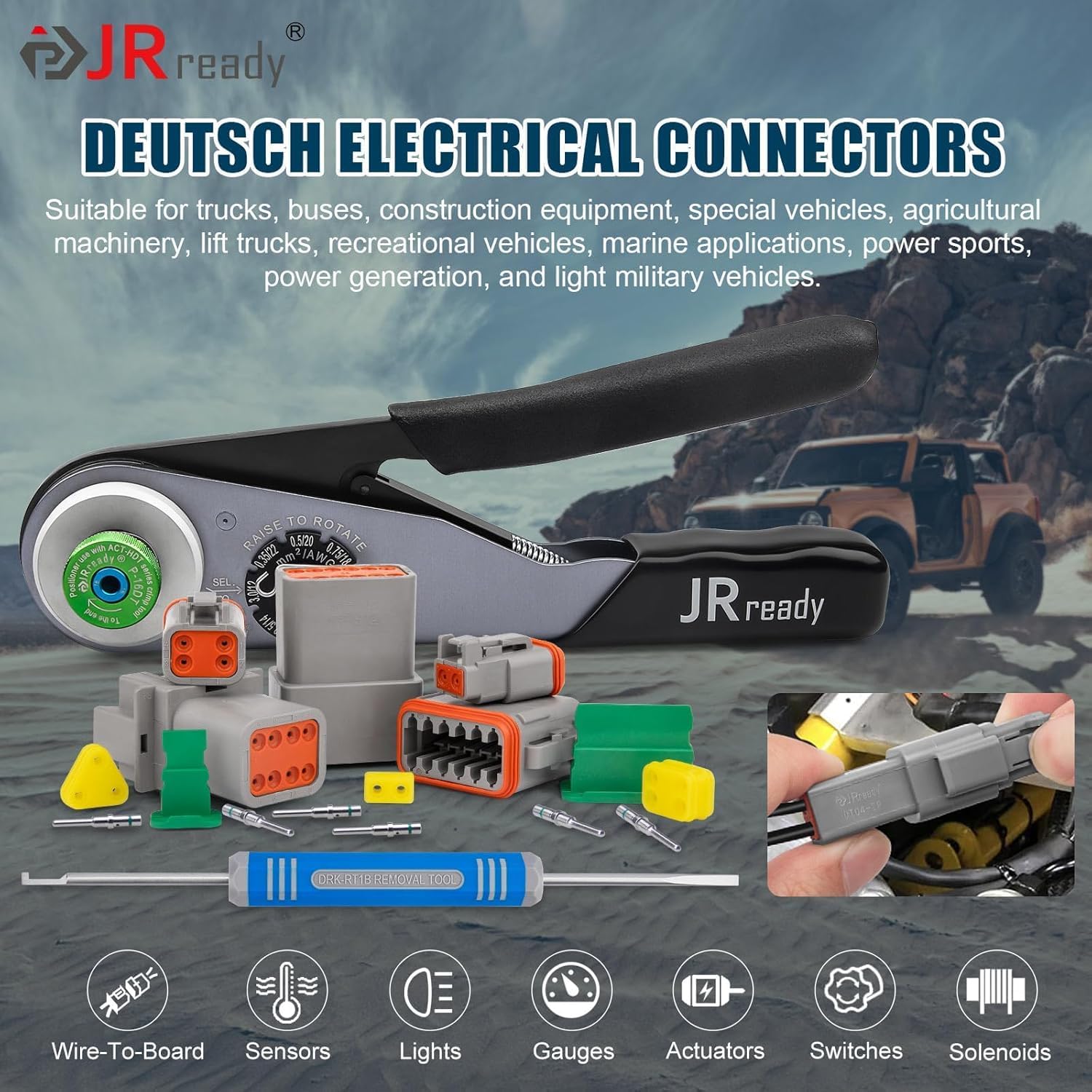

- DEUTSCH CONNECTOR MOUNTING CLIPS – Tough, lightweight, durable, and safe to use. Simply align with the connector slot and push the clip in for a secure fit. These professional-grade tools are reusable and designed to stay in place, helping maintain an organized work area.
- 24 HOURS SOLVE - The deutsch connector kit has 24×7 hours solve, equipped with detailed instructions, don't worry about the quality and use of our products.
| Brand | JRready |
|---|---|
| Model | DW1005 |
| Item Weight | 1.61 pounds |
| Manufacturer | JRready |
| Item model number | DW1005 |
| Package Dimensions | 11.34 x 7.36 x 2.44 inches |
| Manufacturer Part Number | DW1005 |
